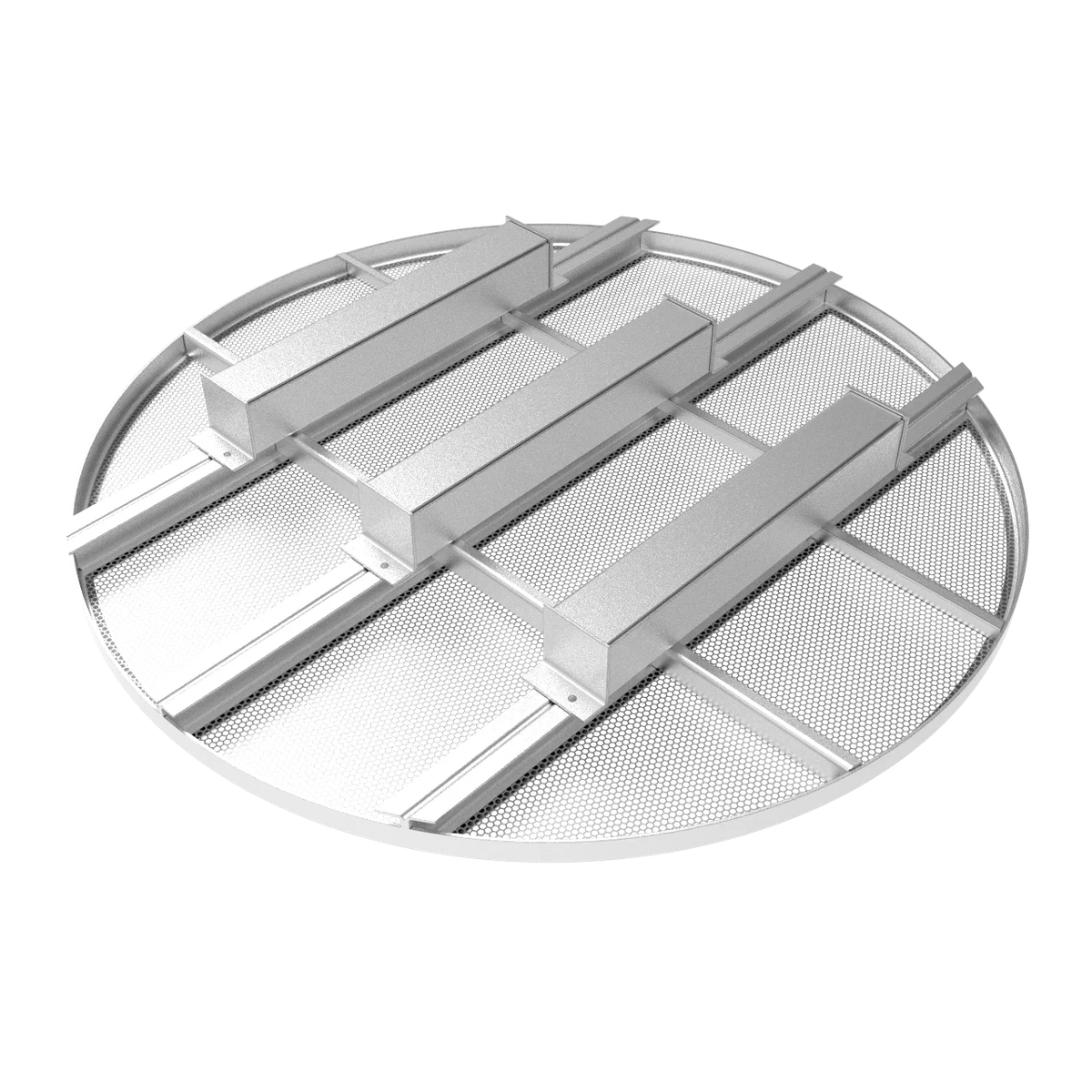

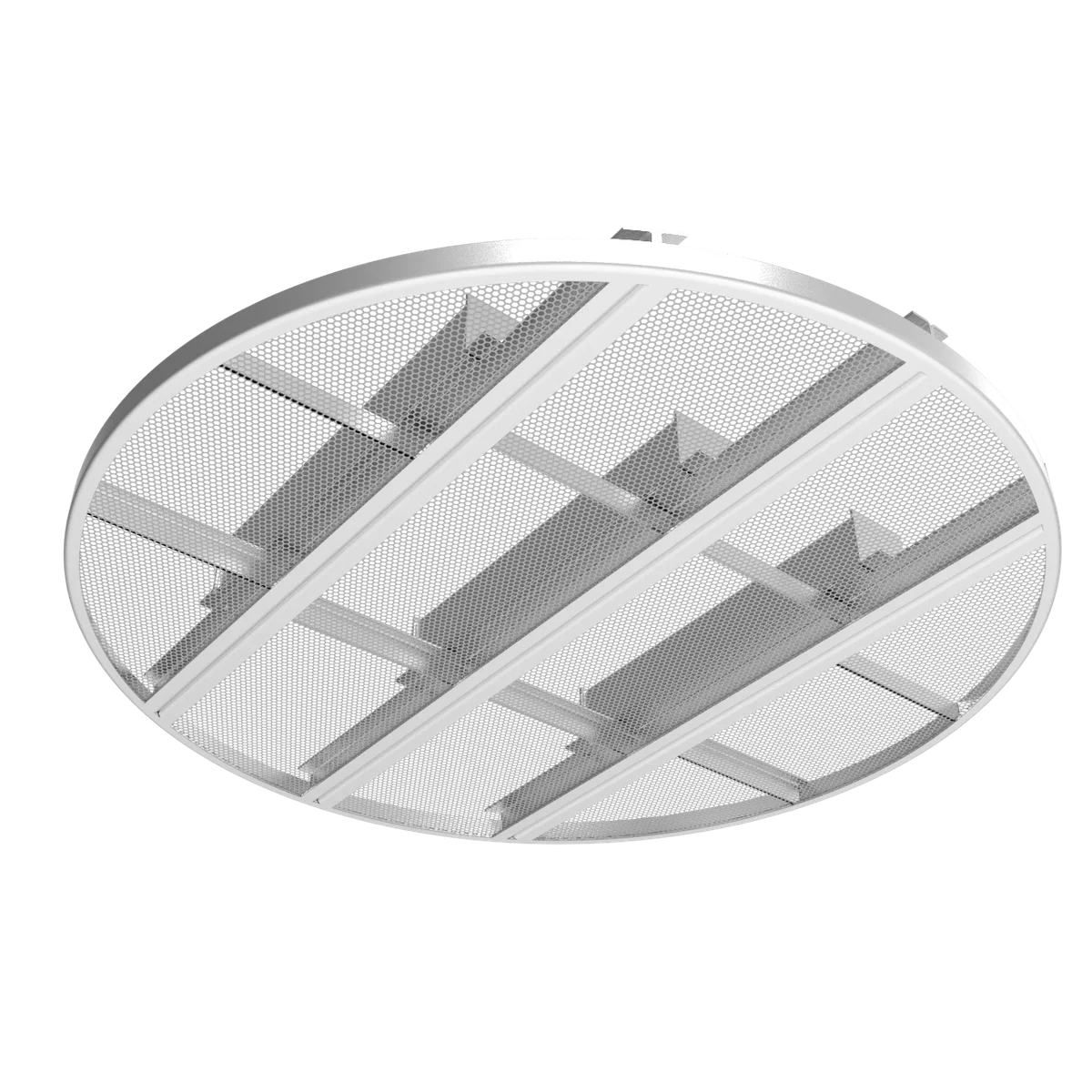

Hold Down Grid

P3-1XX-XXXXX

Floating Hold Down Grid

Oil&Gas
Oil & Gas Fields
Chemical
Oil & Gas Refinery
Petrochemical
Chemical & Petrochemical
  • Floating, non-rigid design that adapts to catalyst bed movement and thermal loads
  • Precise slot or perforation geometry for efficient flow distribution and low pressure drop
  • Improves safety by eliminating the need for confined space entry during removal
  • Durable construction in appropriate materials for high temperature, high pressure, and aggressive environments
  • Compatible with retrofit to existing vessels as well as new installations
  • Simplified assembly and disassembly reduce turnaround time and operating cost

Typical Configurations

NA

Download
Dowload
View
