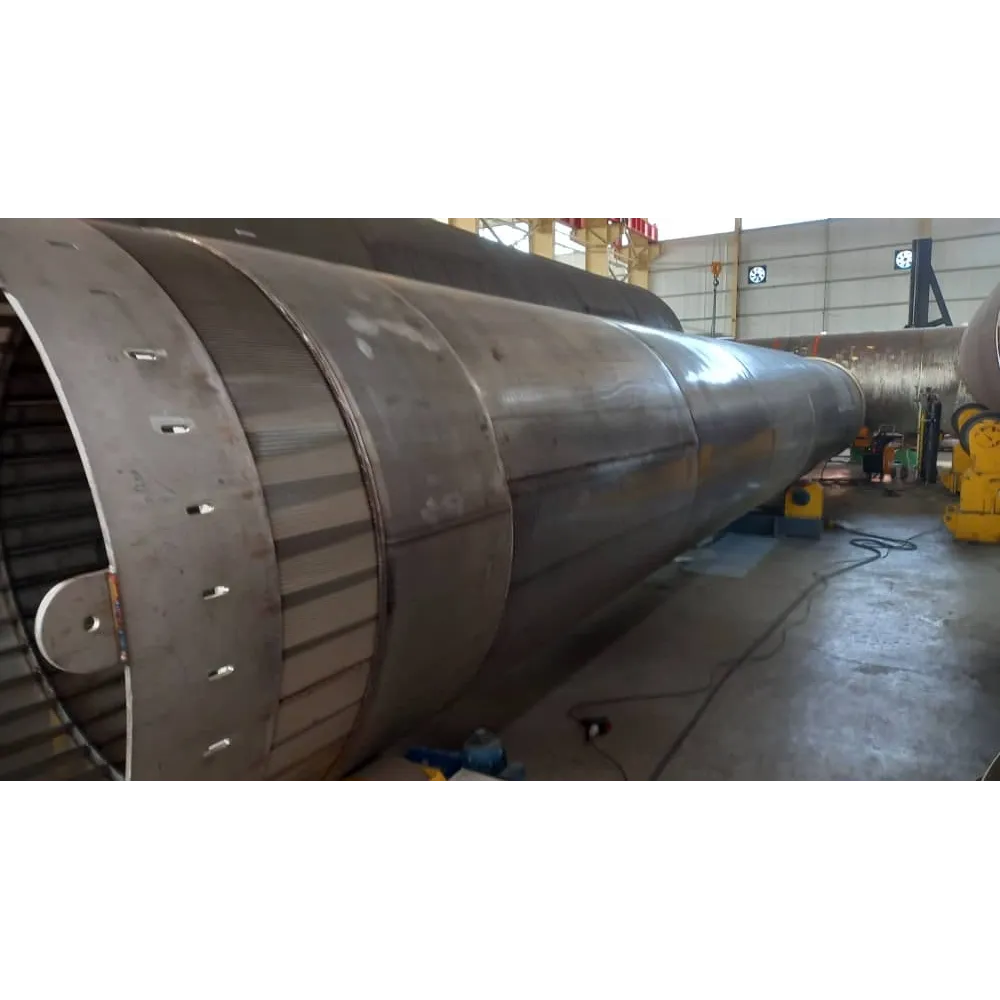

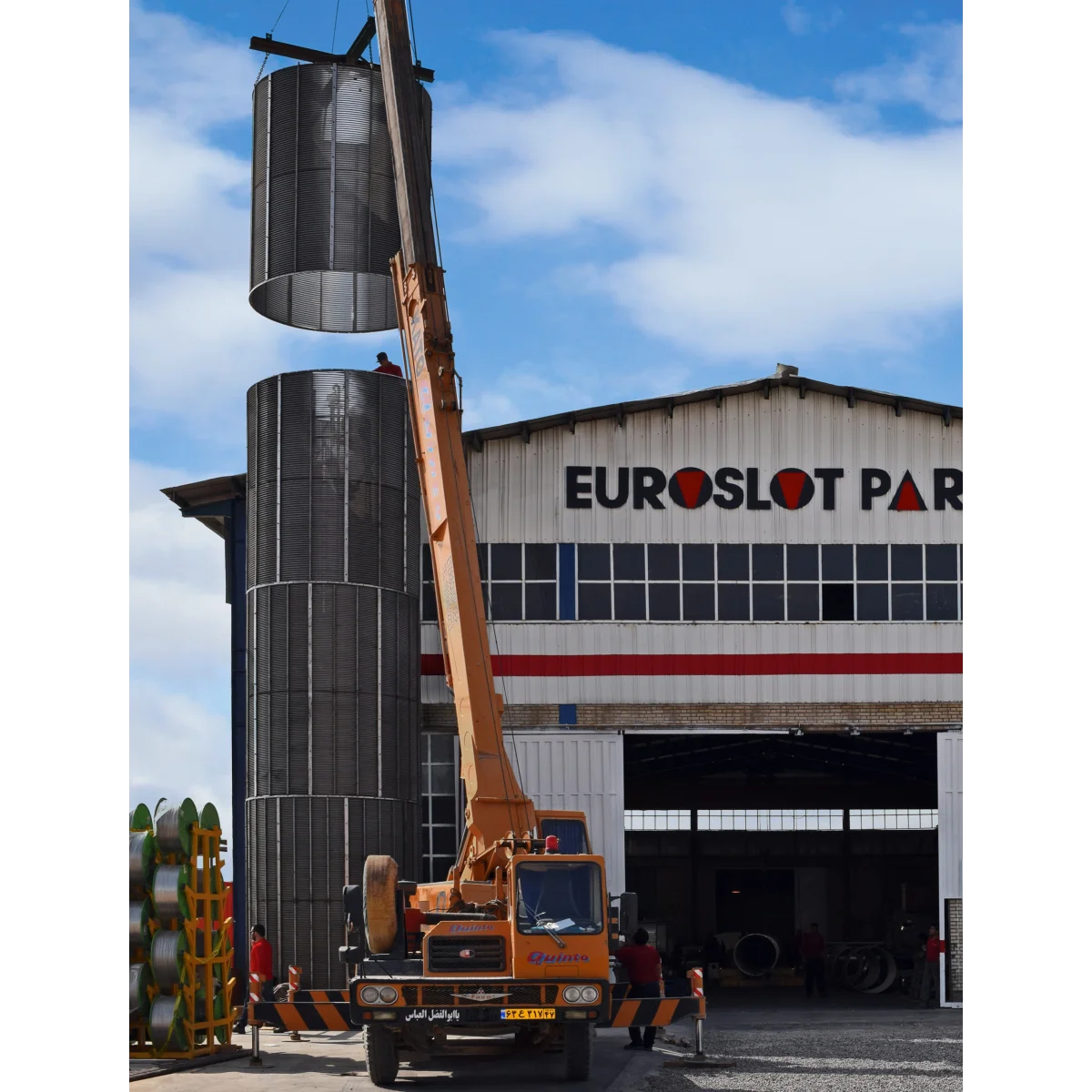

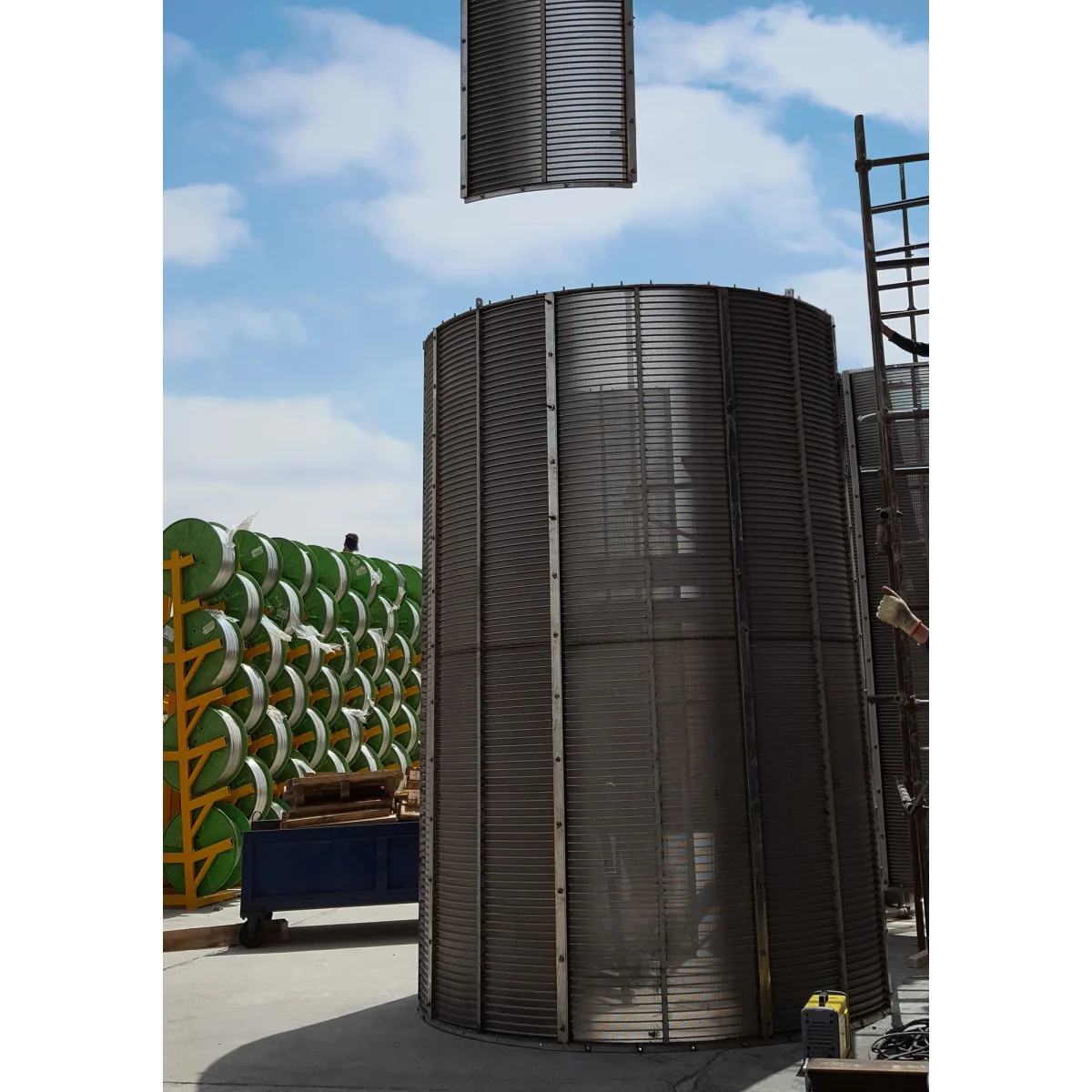

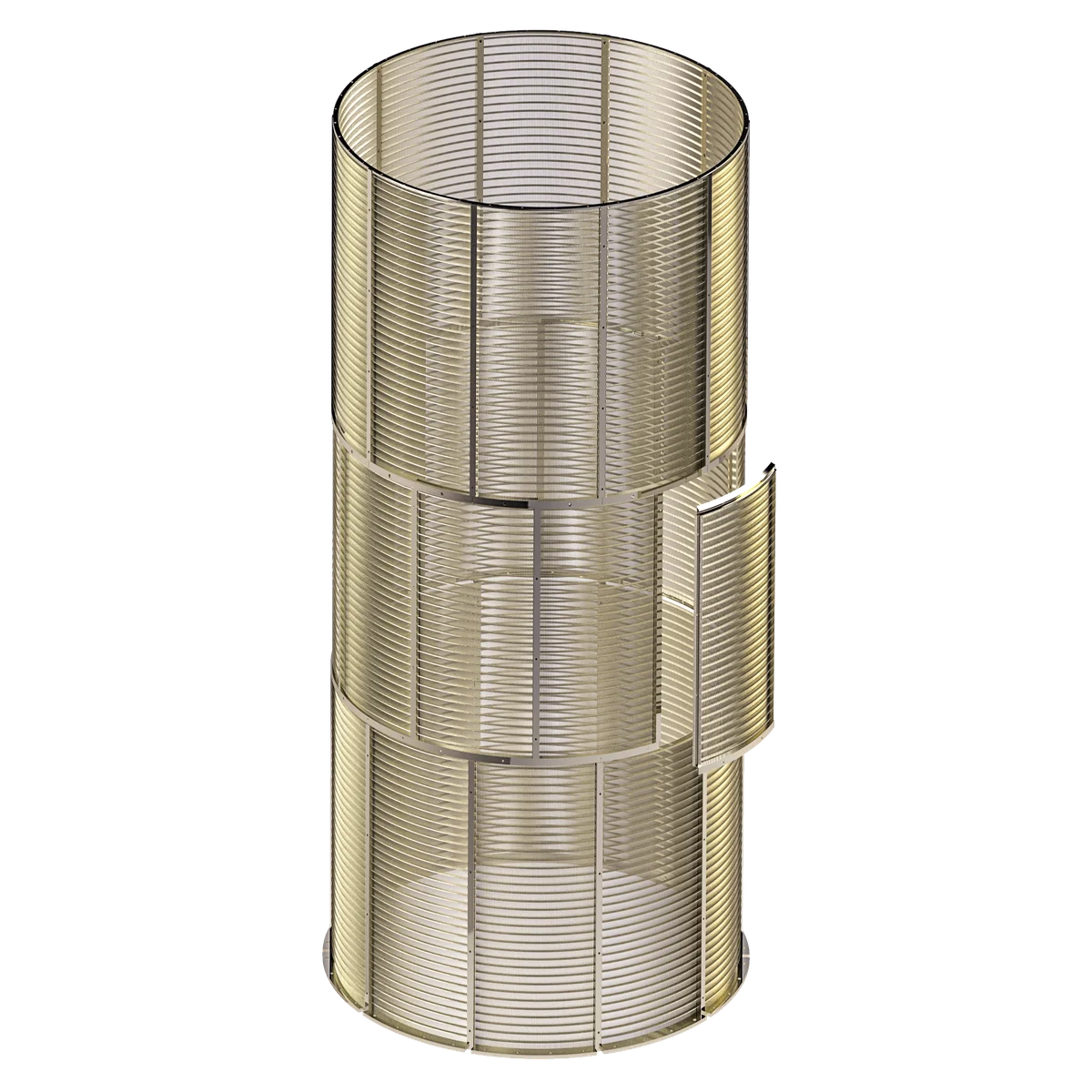

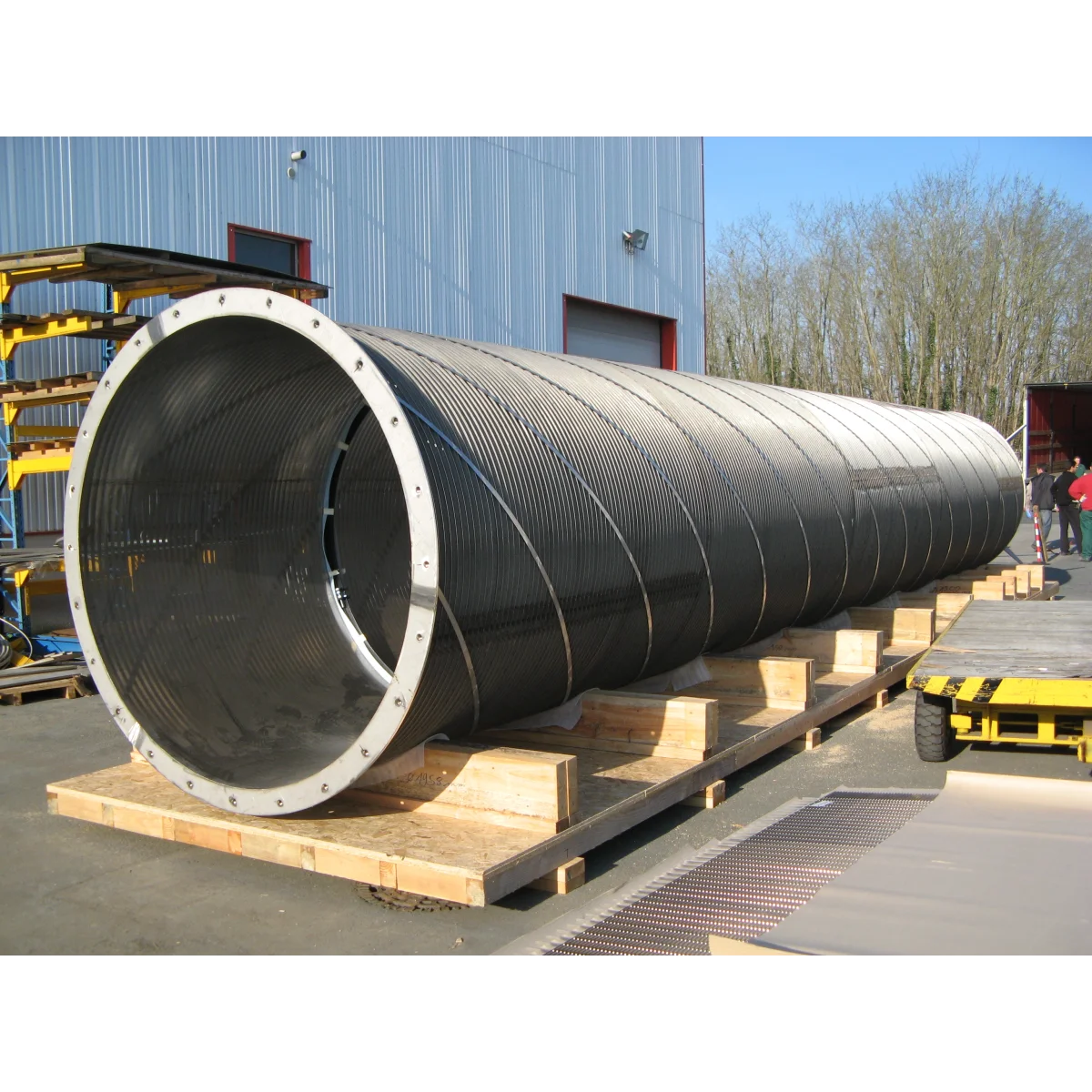

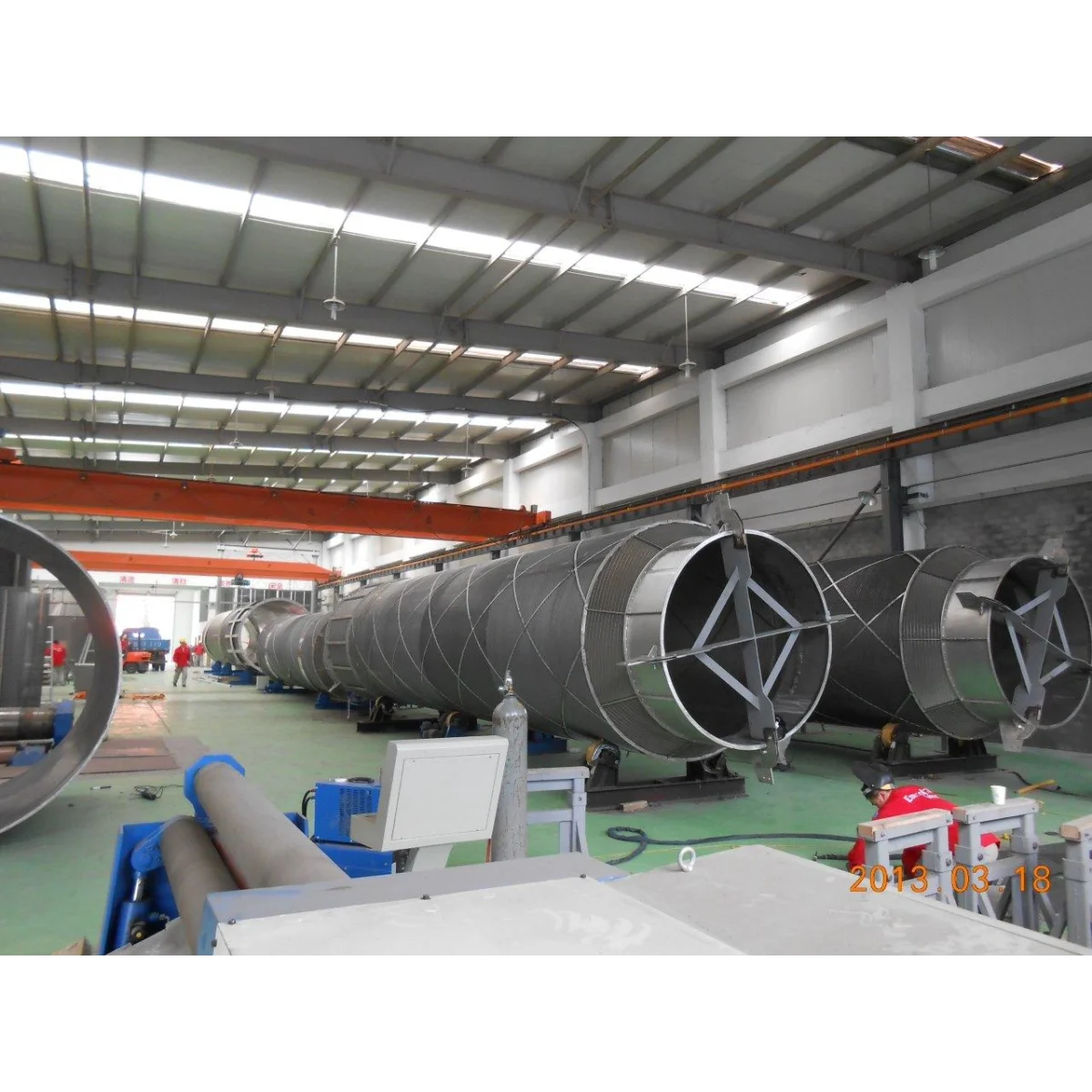

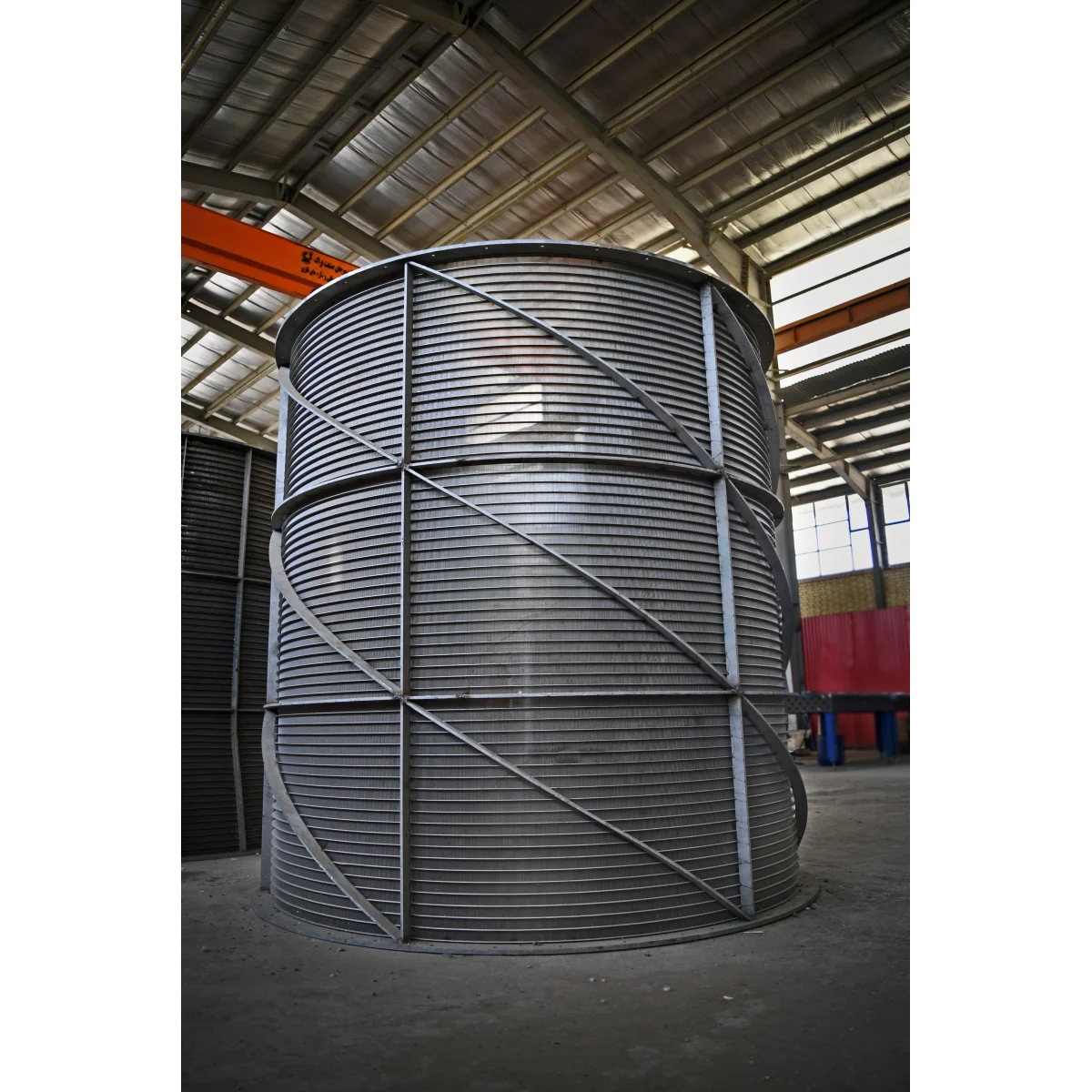

SCS (Spent Catalyst Screen) Basket

P3-2XX-XXXXX

SCS basket consists of longitudinal hollow conduits arranged

Oil&Gas
Oil & Gas Fields
Chemical
Oil & Gas Refinery
Petrochemical
Chemical & Petrochemical
  • Precisely engineered screen structure for effective catalyst retention
  • Optimized slot size to prevent catalyst loss while maintaining low pressure drop
  • High open area design for excellent hydraulic performance
  • Robust mechanical strength for continuous operation
  • Resistant to plugging and fouling
  • Smooth internal surfaces to minimize catalyst attrition
  • Capable of operating under high temperature and pressure conditions
  • Modular basket construction for easy installation and replacement
  • Fabricated from carbon steel, stainless steel, or high alloy materials
  • Custom designed to match catalyst size, reactor geometry, and process duty

Typical Configurations

NA

Download
Dowload
View
